Manufacturers of CNC machines
& Plasma cutters
Made in Cape Town, South Africa
KELBRAND CAM CNC ROUTERS
AND PLASMA TABLES
KB PRO SERIES CNC ROUTER
Designed for heavy duty industrial applications :
-
Wider bearing guide spacings on all axes
-
Large under-gantry clearance for oversized workpieces
-
Rigid aluminium Z-axis assembly with increased travel
-
Structural steel bridge supported by rigid gantry uprights
-
Structural steel frame (All critical component mounting surfaces machined)
-
25mm linear rail used on all axes
-
Air-assist gas piston on the Z-axis to reduce ballscrew wear
-
Higher available spindle power with an efficient duty cycle
These design features provide increased structural rigidity, allowing for deeper cuts, reduced vibration and improved overall cut quality.
Example applications :
-
Large complex moulds and plugs
-
Plywood boat hull core shapes
-
Aerospace parts
-
Furniture manufacturing
-
Plastic components (Conveyor parts, gears, guides, slides etc...)
-
Flat-pack manufacturing
-
Large-format moulds
-
Logos and signage
-
Plastic composites
-
Machining of extruded components
-
Engraving labels (Ballscrew recommended)
-
Foam and styrofoam cutouts
This range is available with either rack-and-pinion or ballscrew drive systems, depending on the required application and level of precision.
KB STANDARD SERIES CNC ROUTER
Well suited for a wide range of industrial and commercial cutting applications.
Features a standard-duty structural steel frame and gantry system, with all critical component mounting surfaces precision machined.
The gantry bridge is supported by rigid gantry uprights, providing a strong and stable cutting platform for demanding applications.
Example Applications :
-
Furniture manufacturing
-
Furniture manufacturing
-
Large-format moulds
-
Logos and signage
-
Plastic composites
-
machining of extruded components
-
Engraving labels (Ballscrew recommended)
-
Foam and styrofoam cutouts
This range is available with either rack-and-pinion or ballscrew drive systems, depending on the required application and level of precision.
KB GANTRY MILL COMPACT SERIES
Designed for large-format mould and plug applications
-
Very large under-gantry clearance enabled by the high-wall design
-
Wider bearing guide spacing across all axes
-
Rigid aluminium Z-axis assembly with extended travel, allowing the spindle to clear the gantry bridge
-
Structural steel bridge supported by rigid gantry uprights
-
Structural steel frame with all critical component mounting surfaces machined
-
20mm linear rails on all axes
-
Air-assist gas piston on the Z-axis to reduce ballscrew wear
-
Ballscrew drive system on all axes
-
The large work envelope is ideally suited to mould and plug manufacturing, with sufficient clearance and Z-axis travel to accommodate large-diameter, long-reach tooling such as ballnose end mills.

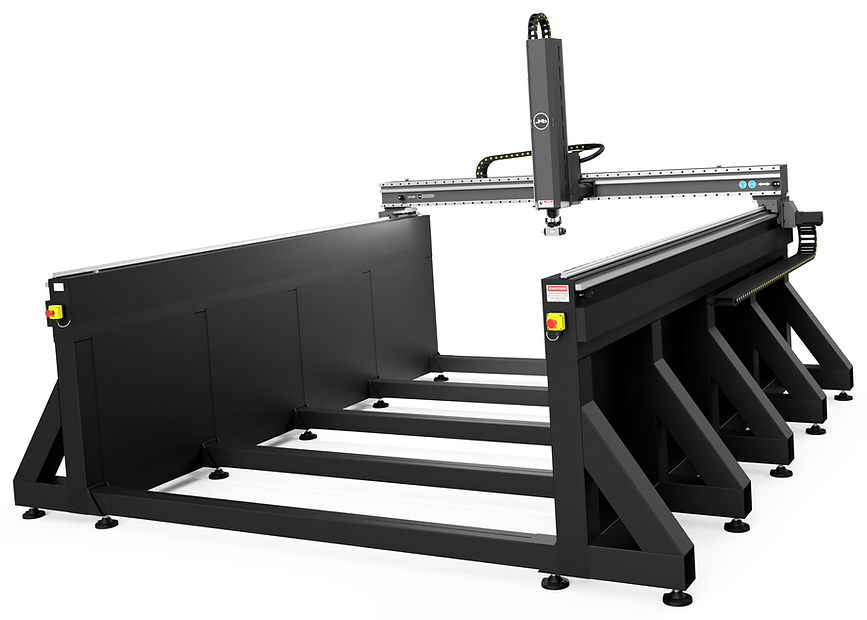

KB GANTRY MILL SERIES
Suitable for very large-format 3D applications
-
Very large under-gantry clearance enabled by the high-wall design
-
Wide bearing guide spacing across all axes for increased rigidity
-
Rigid Z-axis assembly with extended travel
-
Gantry bridge design engineered to significantly improve motion rigidity
-
Large structural steel side walls supporting the gantry bridge, with all critical component mounting surfaces machined
-
Heavy-duty linear rails and guide bearing blocks on all axes
-
Pneumatic balance cylinder on the Z-axis to reduce ballscrew loading and wear
-
Open-frame design for effortless loading and positioning of large workpieces
-
Steel floor struts connecting the side walls to greatly improve overall frame stability while also providing convenient workpiece fixturing points
Example applications
-
Large 3D boat plugs
-
Large UAV and drone moulds for composite and fibreglass production
-
Aerospace components
-
Machining of large-scale composite parts
-
Rapid prototyping of large and complex 3D shapes
KB DESKTOP SERIES CNC ROUTER
Designed to deliver the functionality of our larger CNC machines in a more compact and accessible package.
Its compact steel frame is designed for desktop use, providing a smaller footprint while maintaining the rigidity required for accurate and reliable machining.
The space-efficient design makes it well suited to workshops, educational environments and applications where floor space is limited.
All axes use precision ballscrew drive systems rather than the leadscrews commonly found on hobby machines. This provides improved accuracy and reliable motion without compromising on performance.
This machine is ideal for:
-
Part design prototyping
-
Wood carving and engraving
-
Label engraving
-
Logos and signage
-
Education and training in schools and universities
KB MILL SERIES
Our KB Mill Series is designed for precision machining, combining a compact footprint with a rigid fixed-column, moving-table design for exceptional stability, accuracy and surface finish.
Key features:
-
Rigid fixed-column and moving-table configuration
-
Heavy-duty cast iron base and column
-
T-slotted steel table for versatile workholding
-
Compact footprint for efficient workshop use
-
Automatic axis lubrication system
-
400 × 300 mm work envelope
-
Streamlined motion controller and software
-
Protective guide covers on all axes
-
Linear guides and precision ballscrews for smooth, accurate motion
-
Designed for precision machining and high-quality surface finishes
CNC PLASMA SERIES
Our Plasma Series is designed for accurate and reliable metal cutting up to 12mm, and comes standard with a fully integrated torch height control system.
Material sheet is rarely perfectly flat. The included torch height controller automatically monitors and adjusts the torch height to compensate for variations in the material, maintaining a consistent cutting distance and helping prevent torch collisions.
Included as standard is a water table, helping to minimise airborne particles and keep the surrounding workspace cleaner during cutting.
The table also features replaceable steel slats for easy maintenance and long-term use.
For high-volume production of accurate steel components, our CNC Plasma Tables provide a reliable and efficient cutting solution.
INCLUDED STANDARD PACKAGE
Our CNC machines are delivered as a complete solution, providing all the essential tools and software required to start machining from day one.
Each machine includes CAD and CAM software, giving you the ability to design, prepare and manufacture your projects without the need for additional purchases. We make the process simple by supplying everything you need in one complete package.
-
1 year warranty + lifetime support
-
Training for machine operators (Virtual set-up and training for long distance customers )
-
Various size cutters and collets for quick start up (Router and Mill series)
-
A set of torch consumables for quick start up (Plasma series)
( We do stock and supply cutters, collets and plasma consumables for after-sale services )
-
Spindle spanner set (Router and Mill series)
-
Grease gun for maintenance of machine
-
Windows 10/11 based PC excluding monitor for machine operation
-
Machine function-mapped keyboard and mouse for easy operation and control
-
Pre-installed licensed machine control software (UCCNC/Radonix)
-
Pre-installed licensed CAM and design software
-
Operation manuals
